Khúc xạ kế đo độ đường hiển thị số model PAL-Series

0
Mã sản phẩm: PAL-Series
Thêm vào giỏ
  • TP. Hà Nội - 0902226358

    09818637880902226358Hà Phương

    09378199990937819999Khôi Nguyên

  • TP. Hồ Chí Minh - 0967458568

    09022263590902226359Hoàng Giang

Khúc xạ kế đo độ đường hiển thị số model PAL-Series

Thông tin kỹ thuật:


khuc xa ke do do duong hien thi so model pal-series hinh 0khuc xa ke do do duong hien thi so model pal-series hinh 1

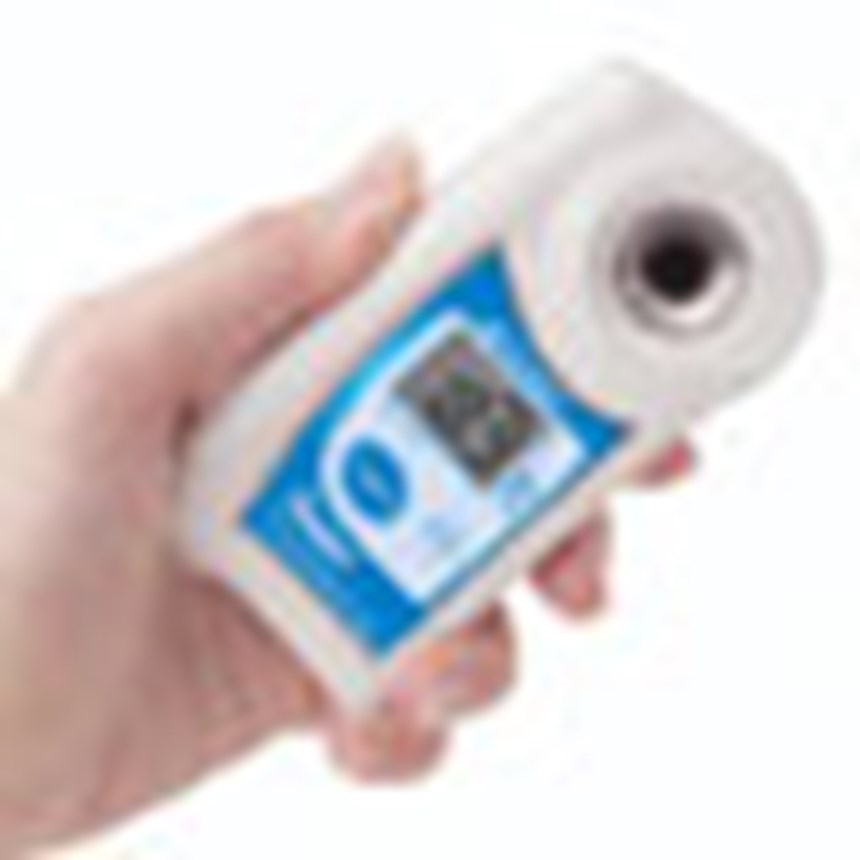

Digital Hand-held "Pocket" Refractometer PAL Everyone is talking about the new "Pocket" as featured on recent TV programs and Magazines.

The PAL is a completely new and redesigned digital hand-held instrument that will change the traditional conceptions of refractometers. The PAL's surprisingly compact size allows you to easily carry it around and use it indoors as well as outdoors.
The size, design, function and performance will surprise you. The PAL with expand your range of measuring possibilities.

khuc xa ke do do duong hien thi so model pal-series hinh 2

♦Features

khuc xa ke do do duong hien thi so model pal-series hinh 3 khuc xa ke do do duong hien thi so model pal-series hinh 4 khuc xa ke do do duong hien thi so model pal-series hinh 5 Our PAL has received
2003“Good Design Award”
2004“Venture Technology Awards (Excellence)”
2005“Technology for Food Industry Award”
khuc xa ke do do duong hien thi so model pal-series hinh 6 Light & Compact, 100g.
Ergonomically designed for one-handed operation.
khuc xa ke do do duong hien thi so model pal-series hinh 7 Sample size 2-3drops.
khuc xa ke do do duong hien thi so model pal-series hinh 8 The speedy performance of the PAL is amazing. Simply put a drop of a sample on the prism surface and press the START key. The Brix value ( sugar content / concentration ) will be displayed in just 3 seconds. khuc xa ke do do duong hien thi so model pal-series hinh 9 High temperature sample can be measured.
khuc xa ke do do duong hien thi so model pal-series hinh 10 Protection class of the PAL is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample. khuc xa ke do do duong hien thi so model pal-series hinh 11 Revolutionary new feature ELI*
*External Light Interference (ELI) - Patent Pending.
khuc xa ke do do duong hien thi so model pal-series hinh 12 The sample stage is designed to keep sample solutions from spilling out. khuc xa ke do do duong hien thi so model pal-series hinh 13 Calibration with water only.
khuc xa ke do do duong hien thi so model pal-series hinh 14 The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature. khuc xa ke do do duong hien thi so model pal-series hinh 15 Convenient Storage case.

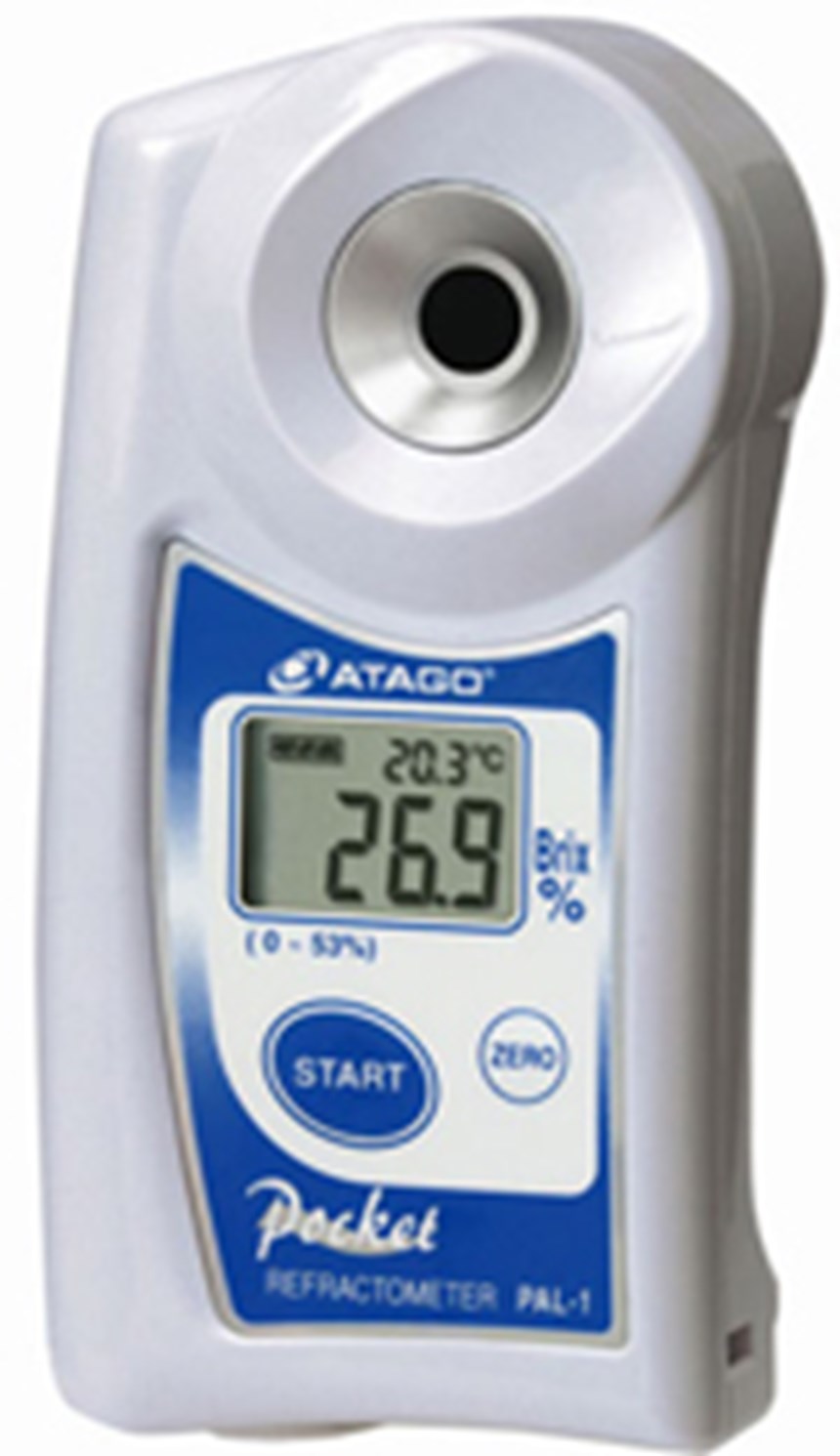

Digital Hand-held "Pocket" Refractometer PAL-1

With its wide measurement range ( Brix 0.0 to 53.0% ) the PAL-1 works perfectly in measuring almost any fruit juice, food, or drink, such as soup, sauce, ketchup, tomato sauce, low-sugar jam, or marmalade.

khuc xa ke do do duong hien thi so model pal-series hinh 16
Model PAL-1 Cat.No. 3810
Measurement Range Brix 0.0 to 53.0 %
Temperature 9.0 to 99.9°C
Resolution Brix 0.1%
Temperature 0.1°C
Measurement Accuracy Brix ±0.2 %
Temperature ±1°C
Ambient Temperature 10 to 40°C
Measurement Temperature 10 to 100 °C
( Automatic Temperature Compensation )
Sample Volume 0.3ml
Power Supply 2 × AAA Batteries
Measurement Time 3 seconds
International Protection Class IP65 Dust-tight and Protected against water jets. Dimensions & Weight 55(W)×31(D)×109(H)mm, 100g (Main Unit only)
Optional SUPER EXTRACTOR: RE-29401
PAL-CASE: RE-39409
STRAP: RE-39410
10% Sucrose Solution (±0.03%): RE-110010
20% Sucrose Solution (±0.03%): RE-110020
30% Sucrose Solution (±0.03%): RE-110030
40% Sucrose Solution (±0.04%): RE-110040
50% Sucrose Solution (±0.05%): RE-110050
* Calibration Certificate : Contact an ATAGO representative for details.
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
Digital Hand-held "Pocket" Refractometer PAL-2

Since the measurement range of PAL-2 is Brix 45.0 - 93.0%, it can measure various high concentration samples such as jam, marmalade, jelly, honey and concentrated juice.
The International Protection class of PAL-2 is IP65, so it can clean thick samples under running water.
When boiling jam or marmalade are measured, the PAL-2 gives steady measurement values as the measurement is repeated for a few times.
It is very useful since "zero-setting" (calibration) can be done with water.
The feature of PAL-1 are fully covered by NEW PAL-2.

khuc xa ke do do duong hien thi so model pal-series hinh 17
Model PAL-2 Cat.No. 3820
Measurement Range Brix 45.0 to 93.0 %
Temperature 9.0 to 99.9°C
Resolution Brix 0.1 %
Temperature 0.1°C
Measurement Accuracy Brix ±0.2 %
Temperature ±1°C
Ambient Temperature 10 to 40°C
Measurement Temperature 10 to 100°C
( Automatic Temperature Compensation )
Sample Volume 0.3 ml
MeasurementTime 3 seconds Power Supply 2 × AAA Batteries
International Protection Class IP65 Dust-tight and Protected against water jets. Dimensions & Weight 55(W)×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE: RE-39409
STRAP: RE-39410
50% Sucrose Solution (±0.05%): RE-110050
60% Sucrose Solution (±0.06%): RE-110060
* Calibration Certificate : Contact an ATAGO representative for details.
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

Digital Hand-held "Pocket" Refractometer PAL-3

Designed with a full Range (Brix 0.0 to 93.0%), the PAL-3 works perfectly for measuring almost any sample. The Full Range PAL-3 has the same great features as the PAL-1 and PAL-2.

khuc xa ke do do duong hien thi so model pal-series hinh 18
Model PAL-3 Cat.No. 3830
Measurement Range Brix 0.0 to 93.0 %
Temperature 9.0 to 99.9°C
Resolution Brix 0.1 %
Temperature 0.1°C
Measurement Accuracy Brix ±0.1 %
Temperature ±1°C
Ambient Temperature 10 to 40°C
Measurement Temperature 10 to 100°C
( Automatic Temperature Compensation )
Sample Volume 0.3 ml
MeasurementTime 3 seconds Power supply 2 × AAA Batteries
International Protection class IP65 Dust-tight and Protected against water jets. Dimensions & weight 55(W)×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE: RE-39409
STRAP: RE-39410
10% Sucrose Solution (±0.03%): RE-110010
20% Sucrose Solution (±0.03%): RE-110020
30% Sucrose Solution (±0.03%): RE-110030
40% Sucrose Solution (±0.04%): RE-110040
50% Sucrose Solution (±0.05%): RE-110050
60% Sucrose Solution (±0.05%): RE-110060
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
Digital Hand-held "Pocket" Refractometer PAL-α

Released on ATAGO's 65th Anniversary, the PAL-α is a special model with a wide brix range (0-85%) offered at a very reasonable price. PAL-α is useful for measuring most kinds of samples as well as samples that are in the cooking process. Designed with a water resistant feature, the PAL-α can be washed under running water. PAL-α is equipped with the same great features as the other PAL units.

khuc xa ke do do duong hien thi so model pal-series hinh 19
Model PAL-α Cat.No. 3840
Measurement Range Brix 0.0 to 85.0 %
Temperature 9.0 to 99.9°C
Resolution Brix 0.1 %
Temperature 0.1°C
Measurement Accuracy Brix ±0.2 %
Temperature ±1°C
Ambient Temperature 10 to 40°C
Measurement Temperature 10 to 100°C
( Automatic Temperature Compensation )
Sample Volume 0.3 ml
MeasurementTime 3 seconds Power supply 2 × AAA Batteries
International Protection class IP65 Dust-tight and Protected against water jets. Dimensions & weight 55(W) ×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE: RE-39409
STRAP: RE-39410
10% Sucrose Solution (±0.03%): RE-110010
20% Sucrose Solution (±0.03%): RE-110020
30% Sucrose Solution (±0.03%): RE-110030
40% Sucrose Solution (±0.04%): RE-110040
50% Sucrose Solution (±0.05%): RE-110050
60% Sucrose Solution (±0.05%): RE-110060
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
Digital Hand-held "Pocket" Refractometer PAL-LOOP

Released on ATAGO's 70th Anniversary, the PAL-LOOP is a special model with new Continuous Measurement feature to give you extra method tailored to meet your needs - select either the new continuous and conventional single measurement mode. Since the measurement range of PAL-LOOP is Brix 0.0 - 85.0%, it can be used to measure almost any samples.

khuc xa ke do do duong hien thi so model pal-series hinh 20
Model PAL-LOOP Cat.No. 3842
Measurement mode 1. Regular (single measurement)
2. Continuous (measure and display repeatedly)
Measurement Range Brix 0.0 to 85.0 %
Temperature 9.0 to 99.9°C
Resolution Brix 0.1 %
Temperature 0.1°C
Measurement Accuracy Brix ±0.2 %
Temperature ±1°C
Ambient Temperature 10 to 40°C
Measurement Temperature 10 to 100°C
( Automatic Temperature Compensation )
Sample Volume 0.3ml or more
MeasurementTime 3 seconds (Regular mode)
1 second (Continuous mode)
Power supply AAA alkaline battery × 2
International Protection class IP65 Dust-tight and Protected against water jets. Dimensions & weight 55(W) ×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE: RE-39409
STRAP: RE-39410
10% Sucrose Solution (±0.03%): RE-110010
20% Sucrose Solution (±0.03%): RE-110020
30% Sucrose Solution (±0.03%): RE-110030
40% Sucrose Solution (±0.04%): RE-110040
50% Sucrose Solution (±0.05%): RE-110050
60% Sucrose Solution (±0.05%): RE-110060
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
Digital Hand-held "Pocket" Refractometer PAL-RI

The long-awaited "Pocket" digital and compact sized refractometer PAL-RI was released.
When the start key is pressed after placing some droplets of sample on the prism, the Refractive Index (resolution 0.0001) and temperature °C of the measurement will be displayed continuously like an electric newsboard. It is also equipped with all the features of the PAL series.

khuc xa ke do do duong hien thi so model pal-series hinh 21

Model PAL-RI Cat.No. 3850
Measurement Range Refractive Index
1.3306 to 1.5284
Resolution Refractive Index 0.0001
Measurement Accuracy Refractive Index ±0.0003 (water at 20°C) Ambient Temperature 10 to 40°C
Measurement Temperature 5 to 45°C
(resolution 1°C )
Sample Volume 0.3 ml
Measurement Time 3 seconds Power supply 2 × AAA Batteries
International Protection class IP65 Dust-tight and Protected against water jets. Dimensions & weight 55(W) ×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE: RE-39409
STRAP: RE-39410
* Calibration Certificate : Contact an ATAGO representative for details.
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
Digital Hand-held "Pocket" Dual Scale Refractometer PAL-BX/RI

PAL-BX/RI has dual scales of Brix full range : Brix 0.0 to 93.0%, high measurement accuracy : Brix ±0.1% and Refractive Index (resolution 0.0001). RI and measurement temperature will continuously scroll across the display. The PAL-BX/RI works perfectly for measuring almost any sample.

khuc xa ke do do duong hien thi so model pal-series hinh 22

Model PAL-BX/RI Cat.No. 3851
Measurement Range Brix 0.0 to 93.0 %
Refractive Index
1.3306 to 1.5284
Temperature 5 to 45°C
Resolution Brix 0.1 %
Refractive Index 0.0001
Temperature 0.1°C
Measurement Accuracy Brix ±0.1%
Refractive Index ±0.0003
(water at 20°C)
Temperature ±1°C
Measurement Temperature 10 to 100°C (Brix only)
(Automatic Temperature Compensation)
Ambient Temperature 10 to 40°C Sample Volume 0.3 ml
Measurement Time 3 seconds Power supply 2 × AAA Batteries
International Protection class IP65 Dust-tight and Protected against water jets. Dimensions & weight 55(W) ×31(D)×109(H)mm, 100g (Main Unit only)
Optional PAL-CASE: RE-39409
STRAP: RE-39410
10% Sucrose Solution (±0.03%): RE-110010
20% Sucrose Solution (±0.03%): RE-110020
30% Sucrose Solution (±0.03%): RE-110030
40% Sucrose Solution (±0.04%): RE-110040
50% Sucrose Solution (±0.05%): RE-110050
60% Sucrose Solution (±0.05%): RE-110060
* Calibration Certificate : Contact an ATAGO representative for
